Прочный пыленепроницаемый шарико-винтовая передача серии SFNU

Дом · Продукция · Шариковый винт · Прочный пыленепроницаемый шарико-винтовая передача серии SFNU
Прочный пыленепроницаемый шарико-винтовая передача серии SFNU

Прочный пыленепроницаемый шарико-винтовая передача серии SFNU

Серия SFNU представляет собой шарико-винтовую передачу, специально разработанную для работы в суровых условиях, связанных с пылью, мусором и брызгами жидкости. Основанный на стандартной серии фланцевых SFU, он объединяет высокоэффективную систему герметизации и пылезащиты, обеспечивающую чистоту внутренней дорожки качения, тем самым поддерживая высокую точность и долгосрочную стабильную работу в сложных условиях. Это идеальный выбор трансмиссии для высоконадежного оборудования автоматизации.

Технология

Истинная ценность серии SFNU заключается в ее концепции проактивной защиты, которая резко контрастирует с защитными возможностями стандартных шарико-винтовых передач. Его основные преимущества сравниваются ниже

Характерные размеры Серия SFNU Сверхпрочный пыленепроницаемый тип Стандартный тип фланца (например, Серия СФУ)
Основные сильные стороны Исключительная экологическая устойчивость, разработанная для сложных условий эксплуатации. Экономически эффективный, подходит для чистых или общих условий эксплуатации.
Возможность защиты Многоступенчатая система герметизации (обычно включающая контактные скребковые уплотнения, лабиринтные бесконтактные уплотнения) эффективно блокирует попадание пыли, мусора и жидкостей. Оснащен только базовыми пылезащитными уплотнениями, обеспечивающими ограниченную защиту.
Эксплуатационная надежность Внутренние дорожки качения сохраняют высокую чистоту, при этом смазка остается незагрязненной для стабильной, надежной долгосрочной работы и низкого уровня отказов. В пыльной среде подвержен ускоренному износу, повышенному шуму или заклиниванию из-за попадания загрязняющих веществ.
Срок службы В эквивалентных суровых условиях срок службы значительно увеличивается при более длительных интервалах технического обслуживания. Срок службы значительно сокращается в условиях запыленности.
Расходы на техническое обслуживание Существенно сокращает непредвиденные простои и затраты на замену, вызванные загрязнителями окружающей среды, обеспечивая более низкие общие эксплуатационные расходы. Может потребоваться более частая очистка, техническое обслуживание или замена.
Применимые сценарии Области применения включают деревообрабатывающее оборудование, обработку камня, сельскохозяйственную технику, литейное производство и наружное оборудование. Подходит для заводских чистых зон, лабораторий, стандартных сборочных линий и т. д.

Основные технические параметры и конструкция
Пылезащитная конструкция: обычно используется многослойное торцевое уплотнение. Самый внешний слой представляет собой уплотнительное кольцо скребкового типа, которое мощно удаляет частицы с поверхности вала; внутренний слой представляет собой лабиринтное уплотнение, которое блокирует мелкую пыль на извилистом пути.

Точность и производительность: унаследована стандартная точность винтов с роликовыми шариками C7 с высокой эффективностью передачи (>90%). Пыленепроницаемая конструкция не оказывает отрицательного влияния на плавность и точность движения.

Диапазон технических характеристик: обеспечивает общие диаметры вала от φ12 мм до φ50 мм и различные варианты выводов. Размеры фланца гайки совместимы со стандартной серией SFU, что облегчает модернизацию и замену оборудования.

Простота установки: встроенная конструкция фланца позволяет производить установку, идентичную установке стандартных фланцевых гаек, не требуя внесения изменений в конструкцию оборудования.

Типичные сценарии применения
Серия SFNU обеспечивает надежную защиту трансмиссии для отраслей, сталкивающихся с проблемами загрязнения, в том числе:

Обработка древесины и камня: пильное, резьбовое и шлифовальное оборудование, обработка древесной щепы и каменной пыли.

Сельскохозяйственная и инженерная техника: наружное мобильное оборудование, такое как сеялки и разбрасыватели удобрений, обеспечивающее защиту от пыли и влаги.

Пищевая и упаковочная промышленность: Обращение со слегка коррозионными порошками, такими как сахар и крахмал.

Общая автоматизация: автоматизированные установки на заводах, расположенных вблизи шлифовальных, штамповочных и других процессов, приводящих к образованию мусора.

Основная ценность прочного пыленепроницаемого шарико-винтовой передачи серии SFNU заключается в «обеспечении защитной брони для точной передачи» Это не просто компонент трансмиссии, а надежное решение для суровых условий труда, эффективно обеспечивающее долгосрочную стабильную работу оборудования в сложных условиях, существенно снижающее затраты на техническое обслуживание и риски простоев.

Параметры

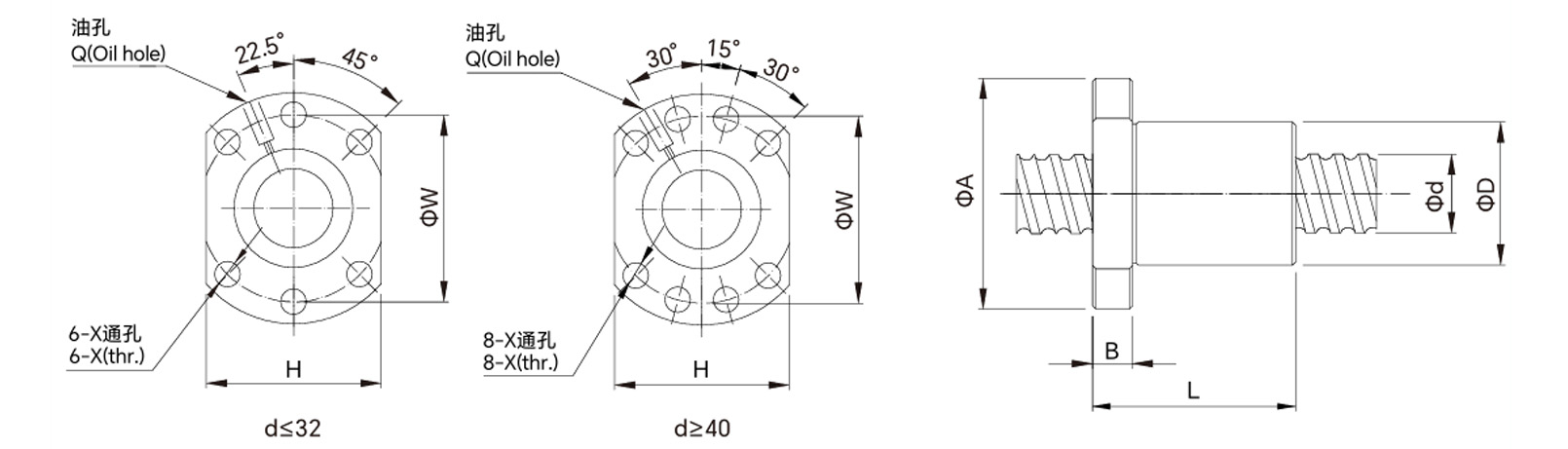

Модель №. д л Да Размер Номинальная нагрузка Жесткость Вес
Д А Б Л В Х Х КВ н Са(кгс) Коа(кгс) Кгф/мкм Кг
СФНУ1204-4 12 4 2.381 24 40 10 40 32 30 4.5 М6 1х4 902 1884 26 0.138
СФНУ1605-4 16 5 3.175 28 48 10 45 38 40 5.5 М6 1х4 1380 3052 32 0.19
СФНУ1610-3 10 3.175 28 48 10 57 38 40 5.5 М6 1х3 1103 2401 26 0.22
СФНУ2005-4 20 5 3.175 36 58 10 51 47 44 6.6 М6 1х4 1551 3875 39 0.316
СФНУ2505-4 25 5 3.175 40 62 10 51 51 48 6.6 М6 1х4 1724 4904 45 0.35
СФНУ2510-4 10 4.762 40 62 12 80 51 48 6.6 М6 1х4 2954 7295 50 0.484
СФНУ3205-4 32 5 3.175 50 80 12 52 65 62 9 М6 1х4 1922 6343 54 0.588
СФНУ3210-4 10 6.350 50 80 12 85 65 62 9 М6 1х4 4805 12208 61 0.832
СФНУ4005-4 40 5 3.175 63 93 14 55 78 70 9 М8 1х4 2110 7988 63 0.97
СФНУ4010-4 10 6.350 63 93 14 88 78 70 9 М8 1х4 5399 15500 73 1.246
СФНУ5010-4 50 10 6.350 75 110 16 88 93 85 11 М8 1х4 6004 19614 85 1.82
SFNU6310-4 63 10 6.350 90 125 18 93 108 95 11 М8 1х4 6719 25358 99 2.576
СФНУ8010-4 80 10 6.350 105 145 20 93 125 110 13.5 М8 1х4 7346 31953 109 3.1

Рисунки


Поддерживает выбор комбинации продуктов

Production Capacity

Cyclone Milling Machines

LWN160-6000mm Leistritz Cyclone milling machines imported directly from
Germany, the ball screw shaft precision can be C3, C5, and C7 the max length
can be 7000mm

Rolled Thread CNC Machines

PR-40CNC Profiroll rolled thread ball screw machines imported directly from
Germany the ball screw shaft precision can be C5, C7 -C10

Rolled Thread CNC Machines

ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan.
The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop

We conduct nut assembly in a constant temperature workshop,  all workers
having decades of work experience and zero clearance between the screw
and nut.

Ball Screw Assembly Workshop

One ball screw shaft matches one ball screw nut. Because each ball screw
shaft has a very tiny different tolerance. There are dozens of different
ball sizes for different screw shaft.
Our ball screw shaft and nut can be interchanged with the Taiwan
TBI ball screw shaft and nut very well.

Model Code Explanation

①Nominal Model
S F I
S: Single nut D: Double nut O: Off set double nut F: With flange C: Without flange NI: NI type nut
U
NU: NU type nut A: A type nut (A solution for slide table) Y: Y type nut U: DIN type nut K: K type nut S: S type nut (A solution for slide table)
②Threading Direction ③Nominal Diameter ④Lead
L: Left R: Right Unit:mm
⑤Number of Turns (Turn·Row)
Turn:T:1 A:1.5(or 1.7/1.8) B:2.5/2.8 C:3.5 D:4.8 ex:(2.5x2 =B2)
⑥Flange Type
N: Not cutting S: Single cutting D: Double cutting
⑦Product Code ⑧Accuracy Grade ⑨Overall Length of Shaft
G: Grind F: Rolled C0, C1, C2, C3, C5, C7, C10 Unit: mm

Axial Clearance and Preload Value Number of Nut
PO, P1, P2, P3, P4 (Leave blank if only one nut is required)
Ex:Install two nuts on a shaft B2
Nut Surface Treatment Shaft Surface Treatment
S: Standard S: Standard
B1: Black Oxidation B1: Black Oxidation
N1: Hard Chrome Plating N1: Hard Chrome Plating
N3: ickel Plating N3: Nickel Plating

Design Accuracy

1-1-1 Lead/Travel Accuracy

According to the standard of JIS,we classified our lead accuracy through E,e,e3oo and e2m four main regulations.As figure 1.1.1~1.1.3 shown in below, all the definition and tolerance are specified.To test the accumulated travel deviations for grade C7 and C10, the tolerance wll be chosen in random 30omm of useful length and evaluated if it is qualified with the e300 table of 1.1.3.

Fig 1.1.1 Diagram of Lead Accuracy

Terms Reference Definition Allowable
Travel Compensation T Travel compensation is the deduction between specified and nominal travel in the useful travel.
A slightly smaller value compared with nominal travel is often selected by customer, to compensate for an expected elongation caused by temperature rise or external load.
Therefore"T "” is usually a negative value.
Note:if no compensation is needed,specified travel is the same as nominal travel.
Table 1.1.2
Actual Travel Actual travel is the axial displacement of the nut relative to the screw shaft.
Mean Travel Mean travelis the linear best fit line of actual. This could be obtained by the leastsquares method. This line represents the tendency of actual travel.
Mean Travel Deviation E Mean travel deviation is the deduction between mean travel and specified travel within travel length.
Travel Variations e

Travel variations is the coverage of 2 lines drawn parallel to the mean travel.
Maximum width of variation within the travel length.
Actual width of variation for the length of 300mm taken anywhere within the travel length.
Wobble error, actual width of variation for one revolution (2πt radian)
Table 1.1.2
Table 1.1.3
Table 1.1.3


Table 1.1.2 Mean Travel Deviation (±E) and Travel Variation (e) (JIS B 1192)

Grade C0 C1 C2 C3 C5 C7 C10
Travel Length (mm) Over Incl. ±E e ±E e ±E e ±E e ±E e e e
100 3 3 3.5 5 5 7 8 8 18 18 ±50/300mm ±210/300mm
100 200 3.5 3 4.5 5 7 7 10 8 20 18
200 315 4 3.5 6 5 8 7 12 8 23 18
315 400 5 3.5 7 5 9 7 13 10 25 20
400 500 6 4 8 5 10 7 15 10 27 20
500 630 6 4 9 6 11 8 16 12 30 23
630 800 7 5 10 7 13 9 18 13 35 25
800 1000 8 6 11 8 15 10 21 15 40 27
1000 1250 9 6 13 9 18 11 24 16 46 30
1250 1600 11 7 15 10 21 13 29 18 54 35
1600 2000 18 11 25 15 35 21 65 40
2000 2500 22 13 30 18 41 24 77 46
2500 3150 26 15 36 21 50 29 93 54
3150 4000 30 18 44 25 60 35 115 65
4000 5000 52 30 72 41 140 77
5000 6300 65 36 90 50 170 93
6300 8000 110 60 210 115
8000 10000 260 140
10000 12500 320 170

Table 1.1.3 International standard of accuracy grade for ball screw

Grade C0 C1 C2 C3 C5 C7 C10
3.5 5 7 8 18 50 210
2.5 4 5 6 8



1-1-2 Axial Play

Axial play of WANGONG's precision ball screw is shown below:

Table 1.1.4 Classification of Axial Play

Grade P0 P1 P2 P3 P4
Axial Play Yes No No No No
Preload No No Light Medium Heavy

Excessive preload increases the friction torque and generates heat which wll reduce the life expectancy. However, insufficient preload will reduce stifness and increase the possibility of lost motion. WANGONG recommends that the preload applied on CNC machine tools should not heavier than 8% of the dynamic load; 5% for industrial automation X-Y table.

Table 1.1.5 The reference spring force of (P2)

Model No. Spring Force (Kg) Single Nut Spring Force(Kg) Double Nut
1605 0.1~0.3 0.3~0.6
2005 0.1~0.3 0.3~0.6
2505 0.2~0.5 0.3~0.6
3205 0.2~0.5 0.5~0.8
4005 0.2~0.5 0.5~0.8
2510 0.2~0.5 0.5~0.8
3210 0.3~0.6 0.5~0.8
4010 0.3~0.6 0.5~0.8
5010 0.3~0.6 0.8~1.2
6310 0.6~1.0 0.8~1.2
8010 0.6~1.0 0.8~1.2


Table 1.1.6 Axial Play (Po) Clearance in the Axial Direction of Rolled and Grind Ball Screw

Nominal Diameter Rolled Ball Screw Clearance in the Axial Direction (max.) Ground Ball Screw Clearancein the Axial Direction (max.)
Φ04~Φ14 miniature ball screw 0.05 0.015
Φ15~Φ40 middle size of ball screw 0.08 0.025
Φ50~Φ100 big size of ball screw 0.12 0.05

1-1-3 Definition of Mounting Accuracy and Tolerance on Ball Screw

The main items of the mounting accuracy of ball screw are listed in below.
(1) Periphery run-out of the supporting part of the screw shaft to the screw groove.
(2) Concentricity of a mounting portion of the shaft to the adjacent ground portion of the screw shaft.
(3) Perpendicularity of the shoulders to the adjacent ground portion of tha screw shaft.
(4) Perpendicularity of the nut flange to the axis of the screw shaft.
(5) Concentricity of the ball nut diameter to the screw groove.
(6) Parallelism of the mounting surface of a ball nut to the screw groove.
(7) Total run-out of the screw shaft to the axis of the screw shaft.
All WANGONG ball screws are manufactured, inspected and guaranteed to be within specifications.

Fig 1.1.2 Mounting Accuracy and Tolerance

1-1-4 Preload Torque
As figure 1.1.3 shown in below, it specified allthe type of preload torque generated by rotating a preloaded ball screw.

Fig 1.1.3 Descriptions of preload torque

Glossary

1. Preload
To generate the inner force inside the ball screw to decrease the
clearance and increase the rigidity, a set of one gage ( approximately 2μ) larger steel balls is filled inside the nut or two nuts which are executing mutual displacement in axial direction.
2. Preload dynamic torque
The dynamic torque required for continuously rotating the screws shaft or the nuts under unload condition and the preload has applied to the ballscrews.
3. Reference torque
The targeted preload dynamic torque Fig 1.1.3-(1)
4. Torque variation values
The variation values of the targeted preload torque variation rates are specified.Take a positive or negative value relative to the reference torque.
5. Torque variation rate
The variation ratio of reference torque.
6. Actual torque
The actual measured preload dynamic torque of the ball screws.
7. Average actual torque
The arithmetic average of the maximal and minimal actual
torque values measured when the nuts are doing reciprocating
movements.
8. Actual torque variation values
After the nut doing reciprocating movements on the effective
length of the thread, the biggest variation tested will be the actual
torque variation value, which is covered between the positive and negative minimum value relative to the actual torque.
9. Actual torque variation rate
The rate of actual torque variation values in relation of the average
actual torque.

Table 1.1.7 Permissible ranges of toque variation rates

Reference torque kgf.cm Effective threading length mm
Below 4000 4000~10000 or less
Slenderness 1:below 40 Slenderness1:40~1:60 -
Grade Grade Grade
More than the following C0 C1 C2,C3 C5 C0 C1 C2,C3 C5 C1 C2,C3 C5
2 4 ±35% ±40% ±45% ±55% ±45% ±45% ±55% ±65% - - -
4 6 ±25% ±30% ±35% ±45% ±38% ±38% ±45% ±50% - - -
6 10 ±20% ±25% ±30% ±35% ±30% ±30% ±35% ±40% - ±40% ±45%
10 25 ±15% ±20% ±25% ±30% ±25% ±25% ±30% ±35% - ±35% ±40%
25 63 ±10% ±15% ±20% ±25% ±20% ±20% ±25% ±30% - ±30% ±35%
63 100 - - ±15% ±20% - - ±20% ±25% - ±25% ±30%

Remarks: 1. Slenderness is the value of dividing the screws shaft outside diameter with the screws shaft threading length.
