Шлифовальный / роликовый шариковый винт C5

Дом · Продукция · Шариковый винт · Шлифовальный / роликовый шариковый винт C5

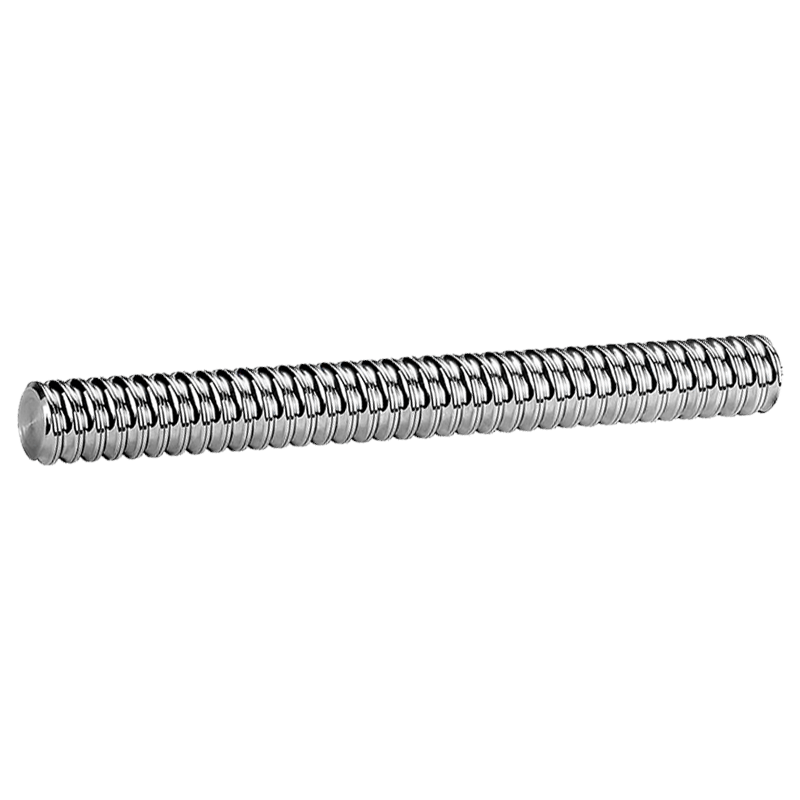

Шлифовальный / роликовый шариковый винт C5

Шлифовальный / роликовый шариковый винт C5

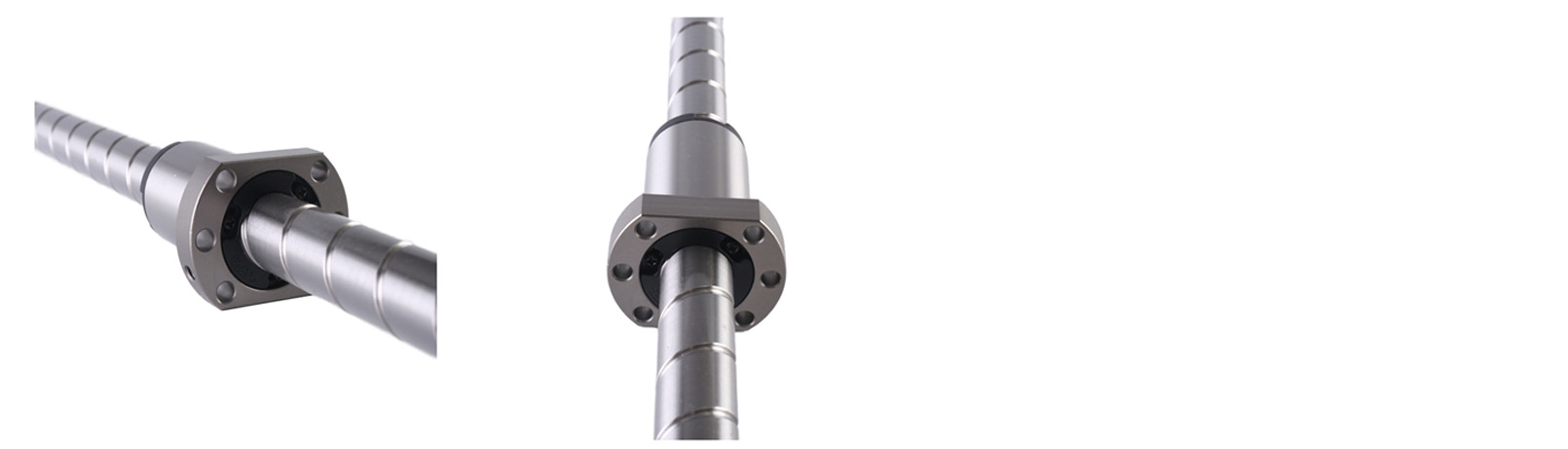

Шаровые винты циклонного фрезерования C5 используют технологию циклонного фрезерования для эффективной и экологически чистой черновой/полуотделочной обработки, в конечном итоге достигая точности класса C5. Он сочетает в себе эффективность и экологические преимущества циклонного фрезерования на этапе производства с точностью и надежностью эксплуатационных характеристик класса С5.

Технология

Технология «циклонного фрезерования»: технология обработки, обеспечивающая баланс между эффективностью и защитой окружающей среды

Характеристики Размеры Подробное объяснение
Основное определение Согласно международным стандартам (таким как JIS), к категории точности относятся уровни средней и высокой точности.
Основные преимущества Высокая точность позиционирования: совокупная погрешность хода в пределах каждого хода 300 мм очень мала, что гарантирует точное и стабильное перемещение оборудования в целевое положение, что является основой для достижения высокоточной обработки и измерения.
Предварительная загрузка Предварительная загрузка обычно предусматривает (например, предварительную нагрузку с использованием увеличенного стального шарика или смещенную предварительную нагрузку) для устранения осевого люфта и обеспечения жесткости привода, быстрого отклика и отсутствия люфта или обратного вращения.
Типичные приложения Он широко используется в сценариях, где требуется стабильная точность, например, в прецизионных станках с ЧПУ, машинах для литья под давлением, оборудовании для производства полупроводников и высокоточных автоматизированных производственных линиях.

«Циклонное фрезерование» — высокоэффективный процесс фрезерования резьбы (включая дорожки качения шарико-винтовой резьбы). Проще говоря, он использует высокоскоростную вращающуюся режущую головку для одновременного фрезерования медленно вращающейся заготовки с целью формирования резьбы.

Его преимущества в первую очередь обусловлены самим процессом, который придает шариковым винтам следующие характеристики:

1. Высокоэффективное и экологичное производство: метод сухой резки (или микрораспылительного охлаждения) устраняет необходимость в традиционной смазочно-охлаждающей жидкости, значительно сокращая переработку отработанной жидкости, что делает его высокоэффективным, экологичным и малозатратным методом обработки.

2. Высокая эффективность обработки: благодаря высокоскоростной прерывистой резке с одновременным использованием нескольких режущих инструментов скорость съема металла значительно выше, чем при традиционной токарной обработке, что повышает эффективность обработки в несколько раз или даже более чем в десять раз, что делает ее особенно подходящей для массового производства.

3. Подходит для крупных и закаленных заготовок: особенно подходит для обработки больших шариковых винтов (часто превышающих 600 мм в длину) с большим отношением длины к диаметру и относительно низкой жесткостью, а также закаленных материалов с твердостью HRC60 или выше, обеспечивая «фрезерование вместо шлифования».


Технические характеристики шлифовального / роликового шарико-винтового привода Φ6~32

Модель №. Точность
Оценка
Направление резьбы Количество канавок Стандартный код вала Тип ореха Максимальная длина вала Вес
д л Да Р/Л мм Кг/м
4 1 0.8 С10, С7, С5 Р 1 SCР0401 К 1000 0.10
6 1 0.8 С10, С7, С5 Р 1 SCР0601 К 1000 0.22
8 1 0.8 С10, С7, С5 Р 1 SCР0801 К 1000 0.39
2 1.2 С10, С7, С5 Р 1 SCР0802 К 0.39
2.5 1.2 С10, С7, С5 Р 1 SCР082.5 К, BSH 0.39
10 2 1.2 С10, С7, С5 Р 1 SCР1002 К, BSH 3000 0.61
4 2 С10, С7, С5 Р 1 SCР1004 К, BSH 0.61
12 2 1.2 С10, С7, С5 Р 1 SCР1202 К 3000 0.88
4 2.38 С10, С7, С5 Р/Л 1 SCР1204 У, БШХ 0.87
5 2.5 С10, С7, С5 Р 1 SCР1205A В, У, БШ, Х, А, С 0.87
14 2 1.2 С10, С7, С5 Р 1 SCР1402 К 1800 1.21
4 2.5 С10, С7, С5 Р 1 SCР1404 БШ 3000 1.2
16 4 2.381 С10, С7, С5 Р 1 SCР1604(N) В, И, У, БШ 4000 1.57
5 3.175 С10, С7, С5 Р/Л 1 SCР1605 В, НИ, НУ, БШХ 1.56
10 3.175 С10, С7, С5 Р/Л 2 SCР1610 В, НИ, НУ, БШХ 1.56
16 2.778 С10, С7, С5 Р 4 SCР1616 Й 1.55
32 2.778 С10, С7, С5 Р 8 SCР1632 Й 1.55
20 4 2.381 С10, С7, С5 Р 1 SCР2004(N) В, И, У 4000 2.45
5 3.175 С10, С7, С5 Р/Л 1 SCР2005 В, НИ, НУ, БШХ, H, A, S 2.45
20 3.175 С10, С7, С5 Р 4 SCР2020 В, Ю, Х, А, С 2.42
40 3.175 С10, С7, С5 Р 8 SCР2040 Й 2.42
25 4 2.381 С10, С7, С5 Р 1 SCР2504(N) Я, У 6000 3.84
5 3.175 С10, С7, С5 Р/Л 1 SCР2505 В, НИ, НУ, БШХ, H, A, S 3.83
10 4.762 С10, С7, С5 Р/Л 1 SCР2510-А НИ, НУ, БШХ 3.81
25 3.969 С10, С7, С5 Р 4 SCР2525 Й 3.79
50 3.969 С10, С7, С5 Р 8 SCР2550 Й 3.79
32 4 2.381 С10, С7, С5 Р 1 SCР3204(N) В, И, У 6000 6.3
5 3.175 С10, С7, С5 Р/Л 1 SCР3205 В, НИ, НУ, М, Н, А, С 6.29
10 6.35 С10, С7, С5 Р/Л 1 SCР3210 В, НИ, НУ 6.23
32 4.762 С10, С7, С5 Р 4 SCR3232 Й 6.22
64 4.762 С10, С7, С5 Р 8 SCR3264 Й 6.22


Стандартные характеристики Φ40~80

Модель №. Точность
Оценка
Резьба
Направление
Количество
Канавки
Стандартный код
вала
Тип ореха Максимальная длина
вала
Вес
д Я Да Р :  L : мм Кг/м
40 5 3.175 С10, С7, С5 Р/Л 1 SCR4005 В, НИ, НУ, H, A, S 6000 9.84
10 6.350 С10, С7, С5 Р/Л 1 SCR4010 В, НИ, НУ 9.78
20 6.350 С10, С7, С5 Р 2 SCR4020 В 9.78
40 6.350 С10, С7, С5 Р 4 SCR4040 Й 9.7
80 6.350 С10, С7, С5 Р 8 SCR4080 Й 9.7
50 5 3.175 С10, С7, С5 Р 1 SCR5005 В, H, A, S 6000 15.39
10 6.350 С10, С7, С5 Р/Л 1 SCR5010 В, НИ, НУ 15.33
20 9.525 С10, С7, С5 Р 1 SCR5020 В 15.23
50 7.938 С10, С7, С5 Р 4 SCR5050 Й 15.15
100 7.938 С10, С7, С5 Р 8 SCR50100 Й 15.15
63 10 6.350 С10, С7, С5 Р 1 SCR6310 В, НИ, НУ 7000 24.39
20 9.525 С10, С7, С5 Р 1 SCR6320 В, NU 24.28
80 10 6.350 С10, С7, С5 Р 1 SCR8010 В, НИ, НУ 7000 39.28
20 9.525 С10, С7, С5 Р 1 SCR8020 В, NU 39.27


Технические характеристики типа S/A Φ16~50

Модель №. Точность
Оценка
Резьба
Направление
Количество
Канавки
Стандартный код
вала
Тип ореха Максимальная длина of
Вал
Вес
д Я Да Р :  L : мм Кг/м
12 10 2.5 С10, С7, С5 Р 2 ССР1210 Х, А, С 3000 0.87
15 5 2.778 С10, С7, С5 Р 1 ССР1605 Х, А, С 4000 1.37
10 2.778 С10, С7, С5 Р 2 ССР1610 Х, А, С 1.37
16 2.778 С10, С7, С5 Р 4 ССР1616 Х, А, С 1.37
20 2.778 С10, С7, С5 Р 4 ССР1620 Х, А, С 1.37
20 10 3.175 С10, С7, С5 Р 2 ССР2010 Х, А, С 4000 2.45
25 10 3.175 С10, С7, С5 Р 2 ССР2510 Х, А, С 6000 3.83
25 3.175 С10, С7, С5 Р 4 ССР2525 Х, А, С 3.83
31 10 3.969 С10, С7, С5 Р 1 ССР3210 Х, А, С 6000 5.89
20 3.969 С10, С7, С5 Р 2 ССР3220 Х, А, С 5.89
32 3.969 С10, С7, С5 Р 4 ССР3232 Х, А, С 5.89
38 10 6.35 С10, С7, С5 Р 1 ССР4010 Х, А, С 6000 8.82
20 6.35 С10, С7, С5 Р 2 ССР4020 Х, А, С 8.82
40 6.35 С10, С7, С5 Р 4 ССР4040 Х, А, С 8.82
48 10 6.35 С10, С7, С5 Р 1 ССР5010 Х, А, С 6000 14.12
20 6.35 С10, С7, С5 Р 2 ССР5020 Х, А, С 14.12
50 6.35 С10, С7, С5 Р 4 ССР5050 Х, А, С 14.12

Рисунки


Поддерживает выбор комбинации продуктов

Production Capacity

Cyclone Milling Machines

LWN160-6000mm Leistritz Cyclone milling machines imported directly from
Germany, the ball screw shaft precision can be C3, C5, and C7 the max length
can be 7000mm

Rolled Thread CNC Machines

PR-40CNC Profiroll rolled thread ball screw machines imported directly from
Germany the ball screw shaft precision can be C5, C7 -C10

Rolled Thread CNC Machines

ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan.
The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop

We conduct nut assembly in a constant temperature workshop,  all workers
having decades of work experience and zero clearance between the screw
and nut.

Ball Screw Assembly Workshop

One ball screw shaft matches one ball screw nut. Because each ball screw
shaft has a very tiny different tolerance. There are dozens of different
ball sizes for different screw shaft.
Our ball screw shaft and nut can be interchanged with the Taiwan
TBI ball screw shaft and nut very well.

Model Code Explanation

①Nominal Model
S F I
S: Single nut D: Double nut O: Off set double nut F: With flange C: Without flange NI: NI type nut
U
NU: NU type nut A: A type nut (A solution for slide table) Y: Y type nut U: DIN type nut K: K type nut S: S type nut (A solution for slide table)
②Threading Direction ③Nominal Diameter ④Lead
L: Left R: Right Unit:mm
⑤Number of Turns (Turn·Row)
Turn:T:1 A:1.5(or 1.7/1.8) B:2.5/2.8 C:3.5 D:4.8 ex:(2.5x2 =B2)
⑥Flange Type
N: Not cutting S: Single cutting D: Double cutting
⑦Product Code ⑧Accuracy Grade ⑨Overall Length of Shaft
G: Grind F: Rolled C0, C1, C2, C3, C5, C7, C10 Unit: mm

Axial Clearance and Preload Value Number of Nut
PO, P1, P2, P3, P4 (Leave blank if only one nut is required)
Ex:Install two nuts on a shaft B2
Nut Surface Treatment Shaft Surface Treatment
S: Standard S: Standard
B1: Black Oxidation B1: Black Oxidation
N1: Hard Chrome Plating N1: Hard Chrome Plating
N3: ickel Plating N3: Nickel Plating

Design Accuracy

1-1-1 Lead/Travel Accuracy

According to the standard of JIS,we classified our lead accuracy through E,e,e3oo and e2m four main regulations.As figure 1.1.1~1.1.3 shown in below, all the definition and tolerance are specified.To test the accumulated travel deviations for grade C7 and C10, the tolerance wll be chosen in random 30omm of useful length and evaluated if it is qualified with the e300 table of 1.1.3.

Fig 1.1.1 Diagram of Lead Accuracy

Terms Reference Definition Allowable
Travel Compensation T Travel compensation is the deduction between specified and nominal travel in the useful travel.
A slightly smaller value compared with nominal travel is often selected by customer, to compensate for an expected elongation caused by temperature rise or external load.
Therefore"T "” is usually a negative value.
Note:if no compensation is needed,specified travel is the same as nominal travel.
Table 1.1.2
Actual Travel Actual travel is the axial displacement of the nut relative to the screw shaft.
Mean Travel Mean travelis the linear best fit line of actual. This could be obtained by the leastsquares method. This line represents the tendency of actual travel.
Mean Travel Deviation E Mean travel deviation is the deduction between mean travel and specified travel within travel length.
Travel Variations e

Travel variations is the coverage of 2 lines drawn parallel to the mean travel.
Maximum width of variation within the travel length.
Actual width of variation for the length of 300mm taken anywhere within the travel length.
Wobble error, actual width of variation for one revolution (2πt radian)
Table 1.1.2
Table 1.1.3
Table 1.1.3


Table 1.1.2 Mean Travel Deviation (±E) and Travel Variation (e) (JIS B 1192)

Grade C0 C1 C2 C3 C5 C7 C10
Travel Length (mm) Over Incl. ±E e ±E e ±E e ±E e ±E e e e
100 3 3 3.5 5 5 7 8 8 18 18 ±50/300mm ±210/300mm
100 200 3.5 3 4.5 5 7 7 10 8 20 18
200 315 4 3.5 6 5 8 7 12 8 23 18
315 400 5 3.5 7 5 9 7 13 10 25 20
400 500 6 4 8 5 10 7 15 10 27 20
500 630 6 4 9 6 11 8 16 12 30 23
630 800 7 5 10 7 13 9 18 13 35 25
800 1000 8 6 11 8 15 10 21 15 40 27
1000 1250 9 6 13 9 18 11 24 16 46 30
1250 1600 11 7 15 10 21 13 29 18 54 35
1600 2000 18 11 25 15 35 21 65 40
2000 2500 22 13 30 18 41 24 77 46
2500 3150 26 15 36 21 50 29 93 54
3150 4000 30 18 44 25 60 35 115 65
4000 5000 52 30 72 41 140 77
5000 6300 65 36 90 50 170 93
6300 8000 110 60 210 115
8000 10000 260 140
10000 12500 320 170

Table 1.1.3 International standard of accuracy grade for ball screw

Grade C0 C1 C2 C3 C5 C7 C10
3.5 5 7 8 18 50 210
2.5 4 5 6 8



1-1-2 Axial Play

Axial play of WANGONG's precision ball screw is shown below:

Table 1.1.4 Classification of Axial Play

Grade P0 P1 P2 P3 P4
Axial Play Yes No No No No
Preload No No Light Medium Heavy

Excessive preload increases the friction torque and generates heat which wll reduce the life expectancy. However, insufficient preload will reduce stifness and increase the possibility of lost motion. WANGONG recommends that the preload applied on CNC machine tools should not heavier than 8% of the dynamic load; 5% for industrial automation X-Y table.

Table 1.1.5 The reference spring force of (P2)

Model No. Spring Force (Kg) Single Nut Spring Force(Kg) Double Nut
1605 0.1~0.3 0.3~0.6
2005 0.1~0.3 0.3~0.6
2505 0.2~0.5 0.3~0.6
3205 0.2~0.5 0.5~0.8
4005 0.2~0.5 0.5~0.8
2510 0.2~0.5 0.5~0.8
3210 0.3~0.6 0.5~0.8
4010 0.3~0.6 0.5~0.8
5010 0.3~0.6 0.8~1.2
6310 0.6~1.0 0.8~1.2
8010 0.6~1.0 0.8~1.2


Table 1.1.6 Axial Play (Po) Clearance in the Axial Direction of Rolled and Grind Ball Screw

Nominal Diameter Rolled Ball Screw Clearance in the Axial Direction (max.) Ground Ball Screw Clearancein the Axial Direction (max.)
Φ04~Φ14 miniature ball screw 0.05 0.015
Φ15~Φ40 middle size of ball screw 0.08 0.025
Φ50~Φ100 big size of ball screw 0.12 0.05

1-1-3 Definition of Mounting Accuracy and Tolerance on Ball Screw

The main items of the mounting accuracy of ball screw are listed in below.
(1) Periphery run-out of the supporting part of the screw shaft to the screw groove.
(2) Concentricity of a mounting portion of the shaft to the adjacent ground portion of the screw shaft.
(3) Perpendicularity of the shoulders to the adjacent ground portion of tha screw shaft.
(4) Perpendicularity of the nut flange to the axis of the screw shaft.
(5) Concentricity of the ball nut diameter to the screw groove.
(6) Parallelism of the mounting surface of a ball nut to the screw groove.
(7) Total run-out of the screw shaft to the axis of the screw shaft.
All WANGONG ball screws are manufactured, inspected and guaranteed to be within specifications.

Fig 1.1.2 Mounting Accuracy and Tolerance

1-1-4 Preload Torque
As figure 1.1.3 shown in below, it specified allthe type of preload torque generated by rotating a preloaded ball screw.

Fig 1.1.3 Descriptions of preload torque

Glossary

1. Preload
To generate the inner force inside the ball screw to decrease the
clearance and increase the rigidity, a set of one gage ( approximately 2μ) larger steel balls is filled inside the nut or two nuts which are executing mutual displacement in axial direction.
2. Preload dynamic torque
The dynamic torque required for continuously rotating the screws shaft or the nuts under unload condition and the preload has applied to the ballscrews.
3. Reference torque
The targeted preload dynamic torque Fig 1.1.3-(1)
4. Torque variation values
The variation values of the targeted preload torque variation rates are specified.Take a positive or negative value relative to the reference torque.
5. Torque variation rate
The variation ratio of reference torque.
6. Actual torque
The actual measured preload dynamic torque of the ball screws.
7. Average actual torque
The arithmetic average of the maximal and minimal actual
torque values measured when the nuts are doing reciprocating
movements.
8. Actual torque variation values
After the nut doing reciprocating movements on the effective
length of the thread, the biggest variation tested will be the actual
torque variation value, which is covered between the positive and negative minimum value relative to the actual torque.
9. Actual torque variation rate
The rate of actual torque variation values in relation of the average
actual torque.

Table 1.1.7 Permissible ranges of toque variation rates

Reference torque kgf.cm Effective threading length mm
Below 4000 4000~10000 or less
Slenderness 1:below 40 Slenderness1:40~1:60 -
Grade Grade Grade
More than the following C0 C1 C2,C3 C5 C0 C1 C2,C3 C5 C1 C2,C3 C5
2 4 ±35% ±40% ±45% ±55% ±45% ±45% ±55% ±65% - - -
4 6 ±25% ±30% ±35% ±45% ±38% ±38% ±45% ±50% - - -
6 10 ±20% ±25% ±30% ±35% ±30% ±30% ±35% ±40% - ±40% ±45%
10 25 ±15% ±20% ±25% ±30% ±25% ±25% ±30% ±35% - ±35% ±40%
25 63 ±10% ±15% ±20% ±25% ±20% ±20% ±25% ±30% - ±30% ±35%
63 100 - - ±15% ±20% - - ±20% ±25% - ±25% ±30%

Remarks: 1. Slenderness is the value of dividing the screws shaft outside diameter with the screws shaft threading length.
